OS f-CLASS SERIE / SORTING TECHNOLOGY

OS f-CLASS Serie

Optical Sorting in a new way

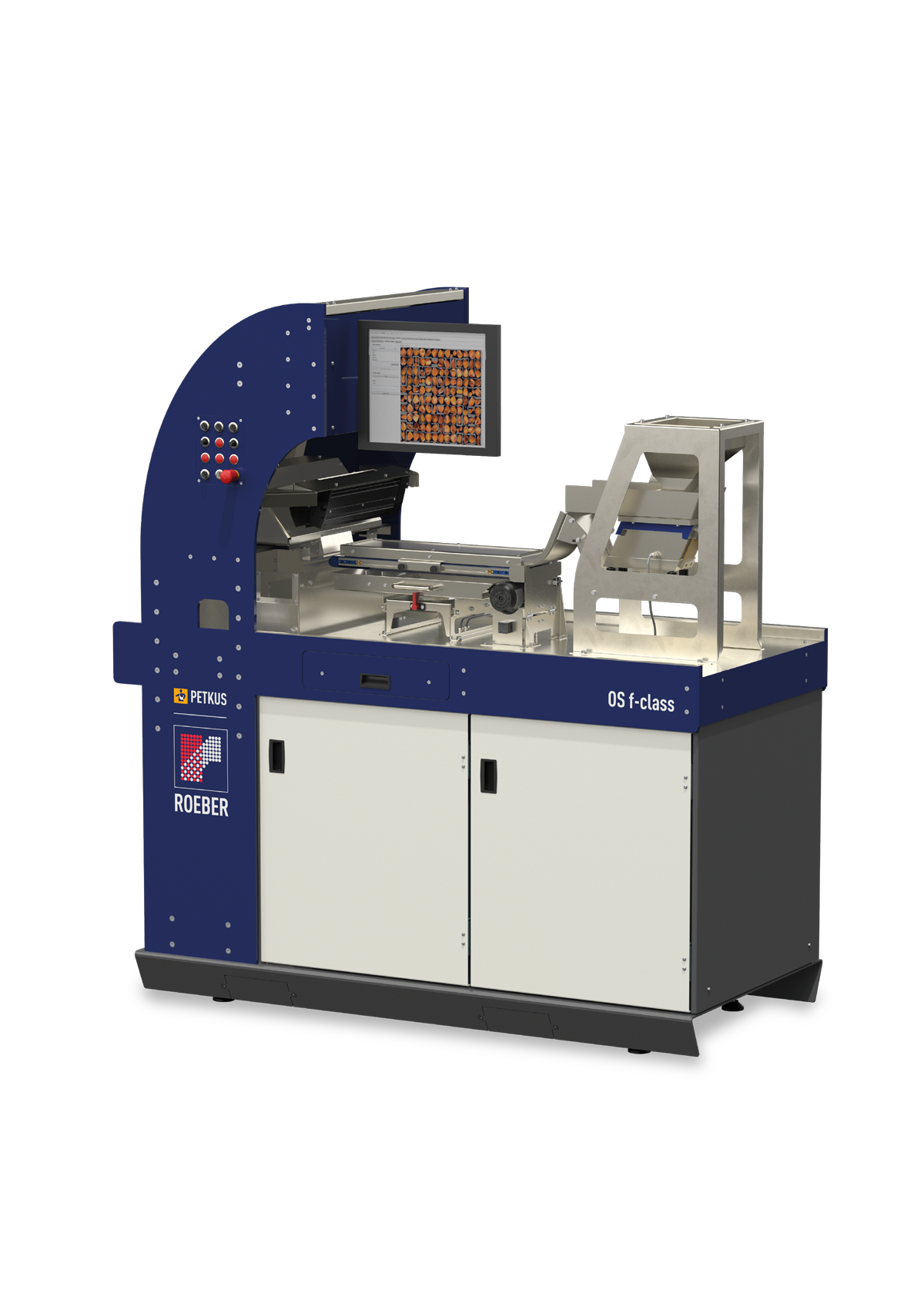

The new ROEBER OS f-class allows to clean small seeds at highest quality level where nowadays standard color sorters fail. The innovative material transport system is well synchronized with the newly developed ejection system. A high resolution full color camera system based on latest high-tech optical components detects tiny differences to ensure purest fine seed lots. The OS f-class is scalable to provide you with the sorting width and capacity you require for your processing line.

OS f-CLASS SERIE PRODUCTS BY CAPACITY

  SMALL MEDIUM LARGE
OS f-CLASS SERIE OS f-CLASS 1.6 OS f-CLASS 3.0
Length (mm) 1.767 1.767
Width (mm) 820 820
Height (mm) 1.931 1.931
Sorting Width (mm) 160 300
Power consumption (kVA) 0.9 1.4
Power supply 230 V AC. 50 Hz
Required Air Flow min. 0.15 m3 per min.*at 2.5 bar
Internet Access LAN-Ethernet-Cable

MAIN FEATURES

Clean Easily

For fine seeds it is normal to have small batches and a great variety of products. Thus, we also focused during the design to clean the OS f-class easily and quickly.

Optics at a New Level

The ROEBER transport system optimally presents the product to the inspection unit where it is scanned by a high resolution and innovative light and optics combination. With this new technology we are able to inspect small objects like vegetable seeds or at the same time large objects like wheat – both with excellent full color image quality. The high contrast allows to distinguish tiny differences which is the basis for high quality sorting. Details of the small seeds are easy to see and can well be evaluated on the large 19” touchscreen.

The high contrast allows to distinguish tiny differences which is the basis for high quality sorting. Details of the small seeds are easy to see and can well be evaluated on the large 19” touchscreen.

TeachNSort Smart+

The new software combines easy automatic teach-in functionality with a manual re-adjustment or amendment functionality. It takes the fact into account that not only nature is diverse but users have in addition different requirements. It makes life easy where it is possible and accounts for complexity where unavoidable. While the OS f-class is active in production, the next product can be prepared offline at the office PC. f-class easily and quickly.

HOW DOES IT WORK?

Seeds smaller than 1 mm are transported from the feeder along a stainless steel chute down to a specially designed conveyor belt system to be scanned at the end and ejected nearly immediately behind the inspection line. Of course, the seeds are also allowed to be bigger than 1 mm.

Because of the special feeding system, the seeds can be round and tumbling or flaky or arbitrarily shaped. This makes the sor ting system applicable to an enormous range of products.

The high-speed valves eject bad objects precisely with a very small nozzle interval to achieve utmost separation of good and bad particles. This new ejection system yields highest sor ting quality for small objects while reducing the loss of good product.

FEATURES

•    Full color inspection
•    Shape detection
•    Sophisticated object splitting
•    Kernel-by-Kernel analysis
•    Automatic & manual & mixed-mode teach-in
•    Capacity Measurement
•    Changeable Background Color

INDICATED FOR

FINE SEEDS

Specially developed for fine seeds: vegetables seeds (rucola, celery), flower seeds (bellis perennis), spices (majoran, sweet pepper) and grass seeds.
